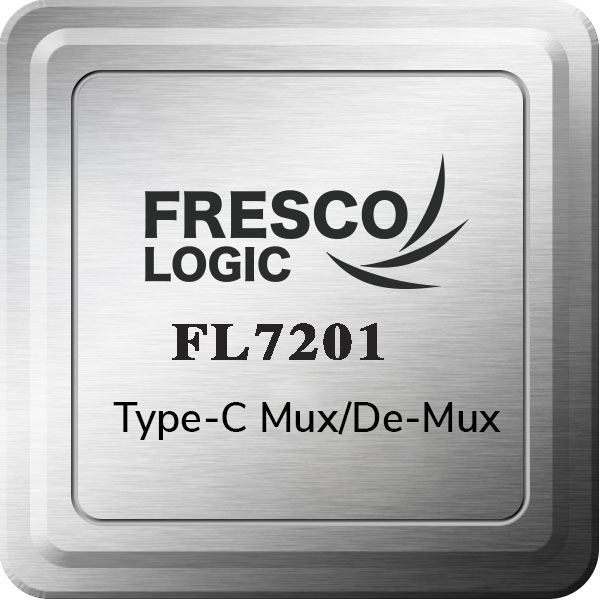

FL7201

USB3.1 Gen1/Gen2 2:1 Mux/Demux

FL7201 is a 2:1 bidirectional passive switch in mux or demux configurations suited for USB Type-C applications supporting USB 3.1 Gen1 and Gen2 data rates. A single SEL pin input is used to switch the differential channels to port 1 or port 2 and and active low OEn can be used to control power-down mode.

FL7201 also can be applied to other high-speed serial interface applications. (E.g. PCI Express, MIPI, etc.)

Features

• Signal Mux/Demux for USB Type- C™ Ecosystem for USB 3.1 Gen 1 and Gen 2 Data Rates

• Support USB3.1 Gen2 data rate up to 10Gbps

• Wide –3-dB Differential BW of over 8 GHz

• Excellent Dynamic Characteristics (at 5 GHz)

• Crosstalk = –32 dB

• Off Isolation = –19 dB

• Insertion Loss = –1.6 dB

• Return Loss = –12 dB

• Bidirectional “Mux/De-Mux” Differential Switch

• Supports Common Mode Voltage 0 to 2 V
