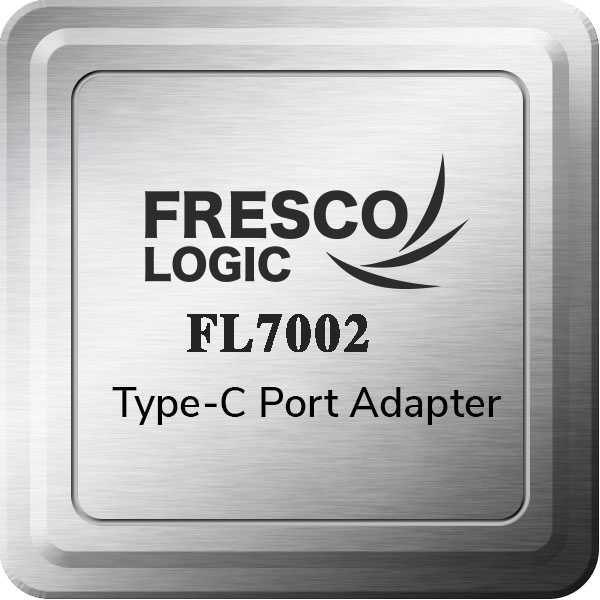

FL7002

USB 3.1 Type-C Port Adapter

FL7002 is an easy and affordable way to add Type-C connector functionality to any USB2 product. The FL7002 integrates all of the required passive components into a single small package. FL7002 automatically performs detection of what is attached to a Type-C connector and provides that information to the platform, making it suitable for phones, laptops, cables, chargers, and more.

Features

• Single chip for CC/Vconn control

• Support Type-C specification v1.1

• Support UFP/DFP/DRP

• Integrated Rd/Rp advertisement

• Integrated Vconn switch

• Integrated voltage regulators

• No external components required

• Low operating current

• Very Low standby current (uA)

• Working voltage is 2.7V-5.0V

• Package: DFN 6 pin, DFN 8 pin

• Dead Battery support

• Lower than 2.7V, the CC will be forced to UFP

• Open-drain indicators forID Pin (OTG support)

• DEBUG Mode

• Cur_Mode

• Cur_Mode_1P5A

• Cur_Mode_3A
